Introduction of anilmal feed pellet machine

Animal feed pellet mill machine,flat die feed pellet mill machine,feed pellet making machine,poultry feed pellet mill machine,livestock feed pellet mill machine.The raw material for this machine can be the food grain like corn, wheat and the crushed waste from

agriculture for example, corn straw, groundnut shell, grass, wheat bran, sawdust, and animal manure and

 so on, they can be pressed into both feedstuffs for many kinds of animals and biomass fuel, the diameter

 of the pellet can be 2~12 mm, when processing ,the lower temperature can maintain the nutrition of the

products. And through general extrusion, it can kill micro~organisms, parasites to prevent disease and to

 store it easily.

Process of animal feed pellet machine

Firstly, put materials into the feeder and let them fall down onto a set of rotating rollers over the die; then, the materials will be compressed between the surface of die and the rotating rollers, while pellets coming out of the die they will be cut into set length by a sharp knife. The temperature is about 70°C in process, so the protein freezes, the nutritional value increases and is easy to absorbed for animals, pellets inside is ripening and outside slippy, rigid enough, suitable for long-term storage.

Features of animal feed pellet machine

1. Raw material: Straw, Sawdust, rice husk, seed shell, palm fiber, corn straw, alfalfa, and other biomass waste materials all kinds of poultry feed,Aquatic feed,Organic compounds,Straw

2.Crushing the raw material into size no bigger than 5mm.

3.Moisture : <18%

4.Pellet diameter: 2-12mm one machine can produce different diameter of pellet by changing the molds.

Applications of animal feed pellet machine

Our machines are widly used in Chicken feed, sheep feed, Rice husk pellelts,Sawdust pellets and so on.

Parameter of animal feed pellet machine

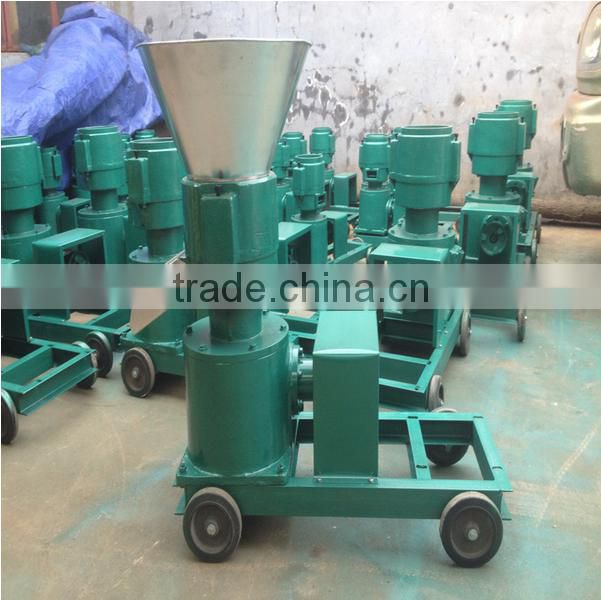

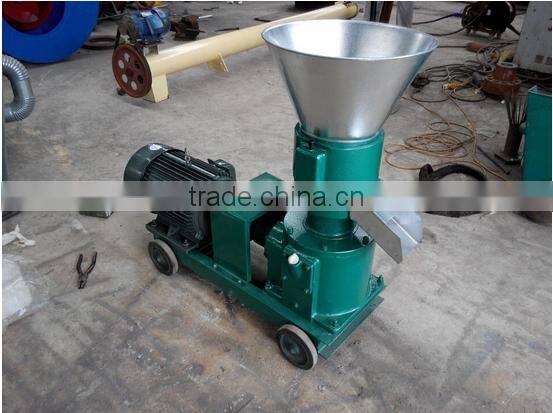

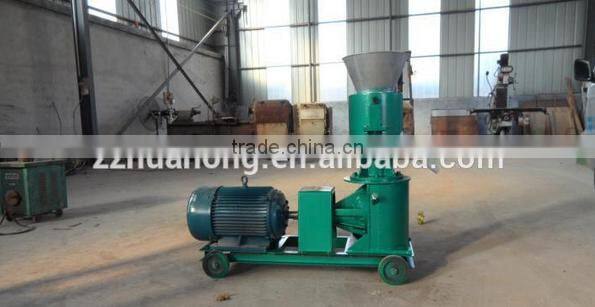

 Product display in our factory

PS: Out animal feed pellet machine also can be designed in engine diesel type.

 Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new design.We provide variety of double roller crusher with high processing capacity, featured structure. As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate. More details PLS click on  http://zzhuahong.en.china.cn/

• Q1. I want to make feed pellet for chicken, what's the proper diameter of the pellets?
  Answer: Diameter of pellets and application(for your reference):

  Applications:	Fish	Piglet	Rabbit/ chicken/pig	Sheep	Cow	Pellet stove	Charcoal briquette
  Diameter(mm)	1.5-2.8	3.2	4.2	5-6	7	8	10-20



  Q2: The machine works well, but it can not make pellets, it is hard to form pellets. What can I do?
  Answer: If the moisture is too high or too low, it is hard to form pellets. It would be better if the moisture is between 13-25%, and the moisture depends on the raw materials. Different raw materials, different moisture.



  Q3. The capacity becomes smaller after a period of time use, why?

  Answer: Probably because the gap between die and rollers is too big. Please decrease the gap between die and rollers. Or it is because the moisture of raw materials is too low. Add some water to increase water content.



  Q4. The machine stops suddenly during working.
  Answer: There must be a big, hard foreign object or metal enter the machine, please cut off the power and get the object or metal out of machine.
