Riveting Machines,Aluminum Plate Rivet Guns,automated Rivet Tools,Self-Pierce Riveting

FOB Price

US$ 7200 - 8000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Herorivet	Place of Origin	China
Model Number	BRK-5	After-sales Service Provided	No overseas service provided
Condition	New

Product Description

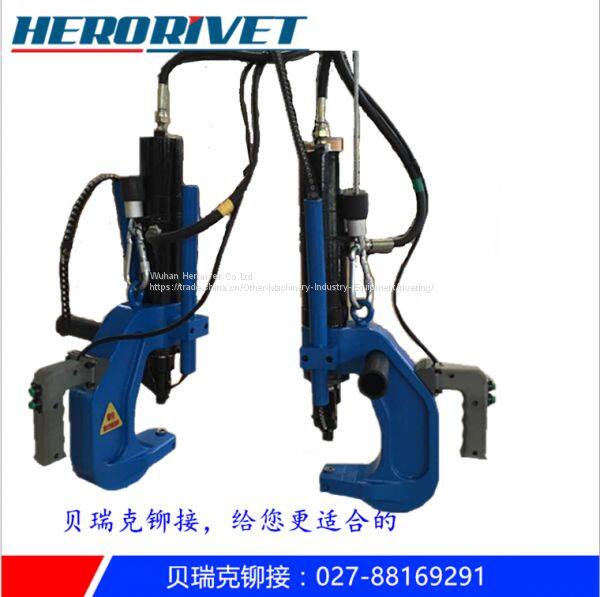

Self-punching riveting machine features:

1, High strength

2, suitable for appearance inspection quality

3, no drilling, a molding

4, Waterproof and airtight

5, can connect metal and non-metallic materials

6, can connect the different thickness material

7, can connect the different strength material

8, can connect the multi-layer material

Self-punching riveting (self-piercing riveting, Self piercing Riveting) technology has the advantages of connecting different materials, high fatigue resistance, good sealing effect and impermeable function, easy to realize mechanization, small energy consumption, small use site and no pollution.

Technical principle and process: the press-side circle first downward movement to the riveting material preload, to prevent the material in the Rivet force under the pressure to the concave mold flow, and then the head downward movement to push the rivet downward piercing the upper material. Under the joint action of the concave die and the punch, the tail of the rivet is opened in the lower metal to form the bell shape so as to lock and achieve the purpose of connection.
